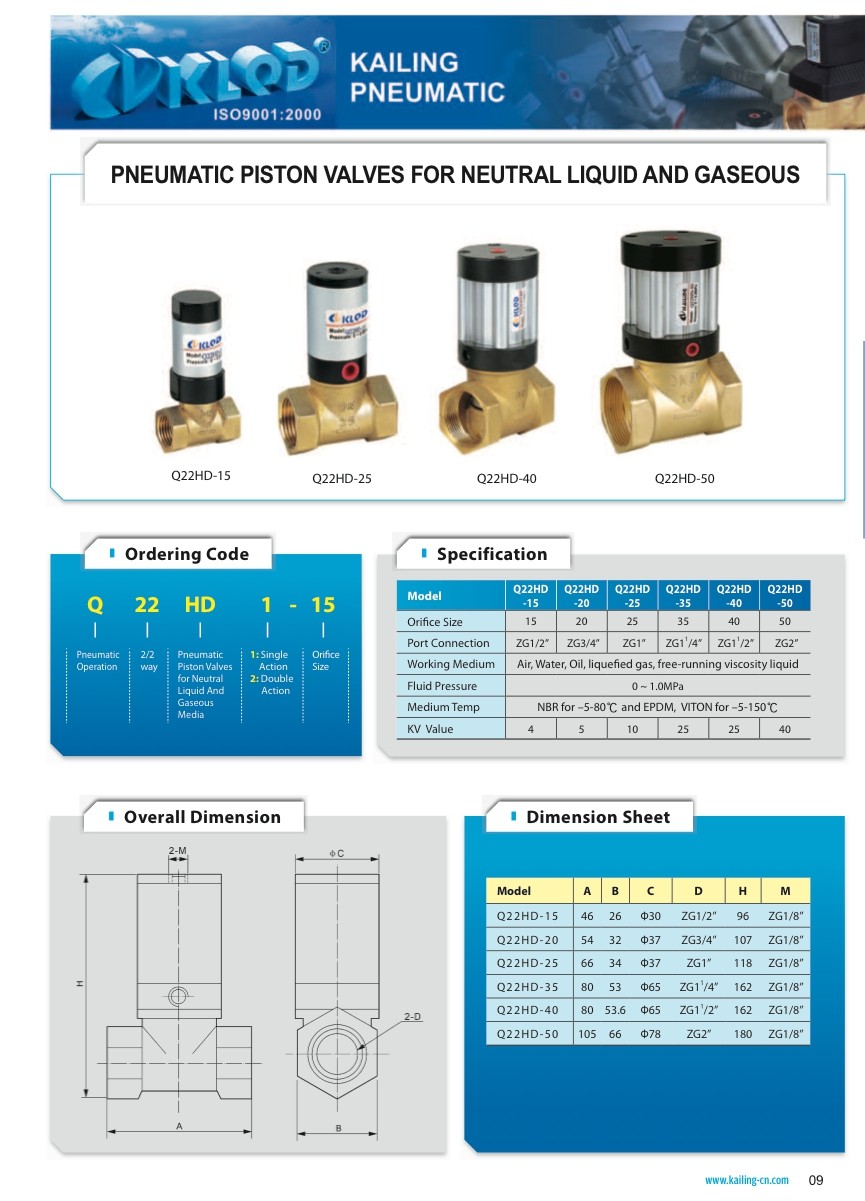

Q22HD series Q22HD-25 1inch air water pneumatic piston valve

Product Description

Ordering Code
Q	22	HD	1	-	15
Pneumatic Operation	2/2 Way	Pneumatic Piston Valves for Neutral Liquid And Gaseous Media	1:Single Action 2:Double Action		Orifice Size

Q22HD series Q22HD-25 1inch air water pneumatic piston valve
Model	Q22HD-15	Q22HD-20	Q22HD-25	Q22HD-35	Q22HD-40	Q22HD-50
Orifice Size	15	20	25	35	40	50
Port Connection	ZG1/2''	ZG3/4''	ZG1''	ZG1-1/4''	ZG1-1/2''	ZG2''
Woeking Medium	Air,Water,Oil,liquefied gas,free-running viscosity liquid
Fluid Pressure	0~1.0MPa
Medium Temp	NBR for -5~80℃ and EPDM,VITON for -5~150℃
KV Valve	4	5	10	25	25	40

Detailed ImagesPacking & DeliveryOur CompanyFAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air
C.Express Service

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Contact us if you need more details on Pneumatic Piston Valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Piston Valve、Valve Piston. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Piston Valves > Piston Valves
