Home > Products > Piston Valves > Angle Seat Valves > 2/2 Way Piston Operated Stainless Steel Thread Pneumatic Angle Seat Valve

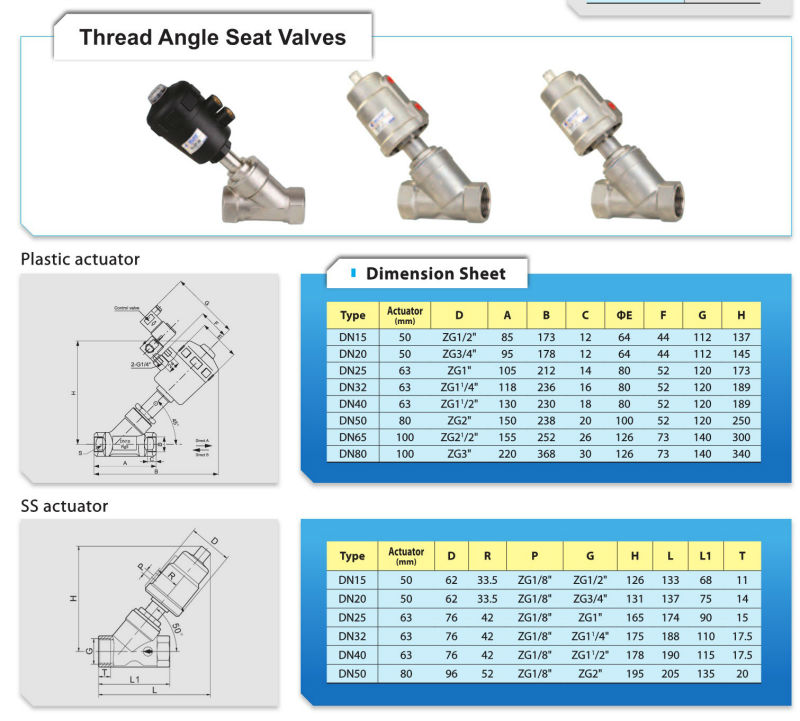

2/2 Way Piston Operated Stainless Steel Thread Pneumatic Angle Seat Valve

Product Description

Product Description2/2 Way Piston Operated Stainless Steel Thread Pneumatic Angle seat valve
Ordering Code
KLJZF
15
Specification
Code
Orifice
Size(mm)
15~100
Actuator
Material
SS:Stainless
Steel
Blank:
Polyamide
Valve Body
Material
Blank:
SS304
SS316:
SS316

Mounting
F:Flang type
connection
W:Welding
model
Blank:
Thread
model

Blank:
Normal
Chose
No:Normal
Open
P:With
positioner
L:Limit
switch
1:Single
Actuator
2:Double
Actuator
Model
Port Size
Working Medium
Air Pressure
Pressure Difference
Operating Temp.(Celsuis)
DN15
ZG1/2''
air,water,oil,gas,
steam
0.4~0.8MPa
0~1.6MPa
-10~180
DN20
ZG3/4''
DN25
ZG1''
DN32
ZG1-1/4''
DN40
ZG1-1/2''
DN50
ZG2''
DN65
ZG2-1/2''
DN80
ZG3''
DN100
ZG4''
Detailed ImagesPacking & DeliveryPaymentFAQQ1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Contact us if you need more details on Angle Valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Piston Valve、Stainless Steel Angle Seat Valve. If these products fail to match your need, please contact us and we would like to provide relevant information.
