Home > Products > 2/2 Way Solenoid Valves > 2W160-15T Popular Type Direct Acting 2/2 Way Solenoid Valve With 1S~99h59min59sec Digital Timer

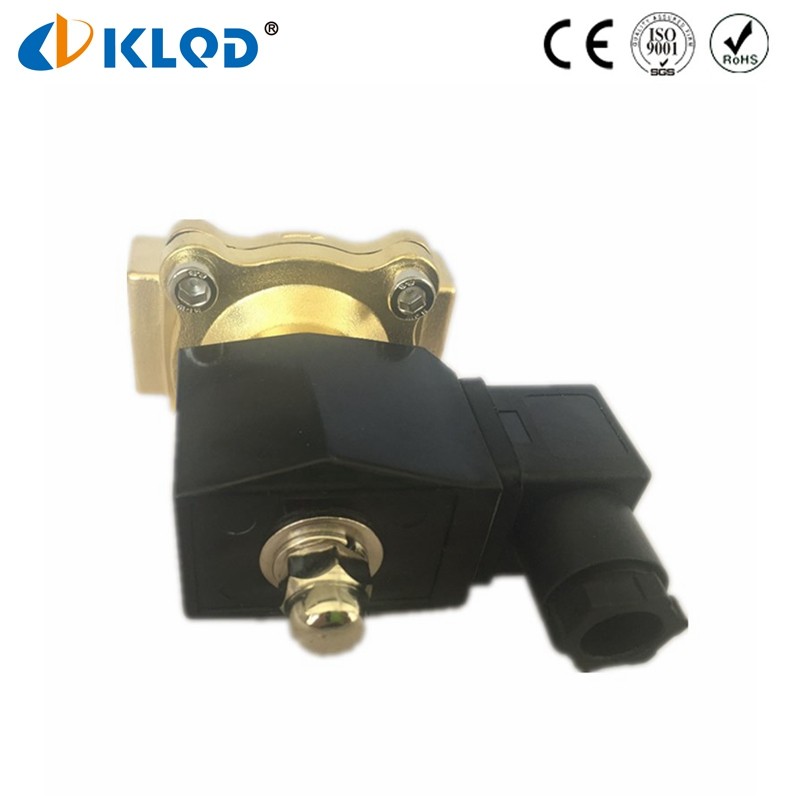

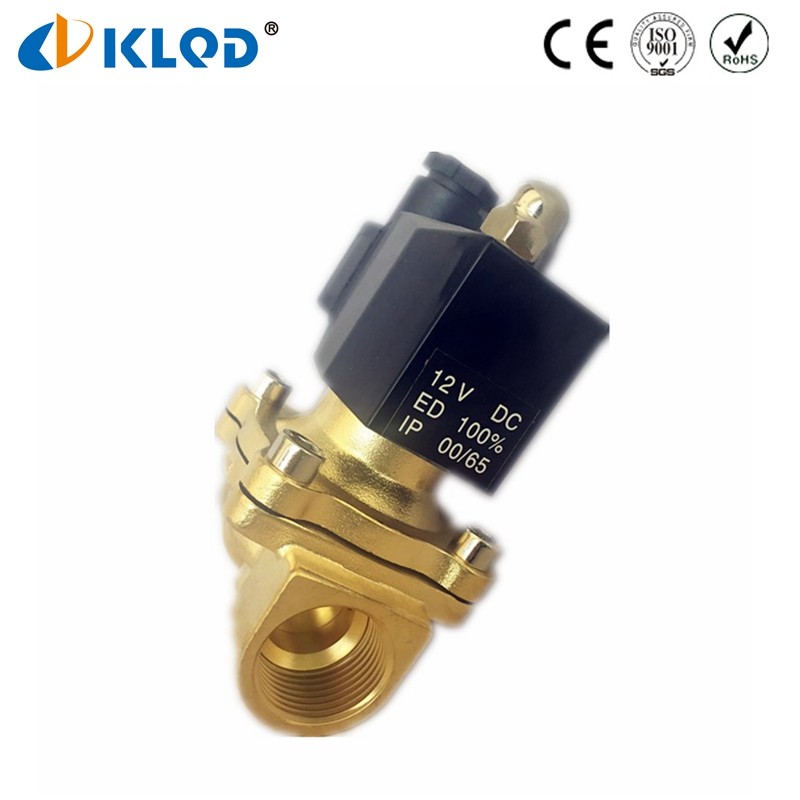

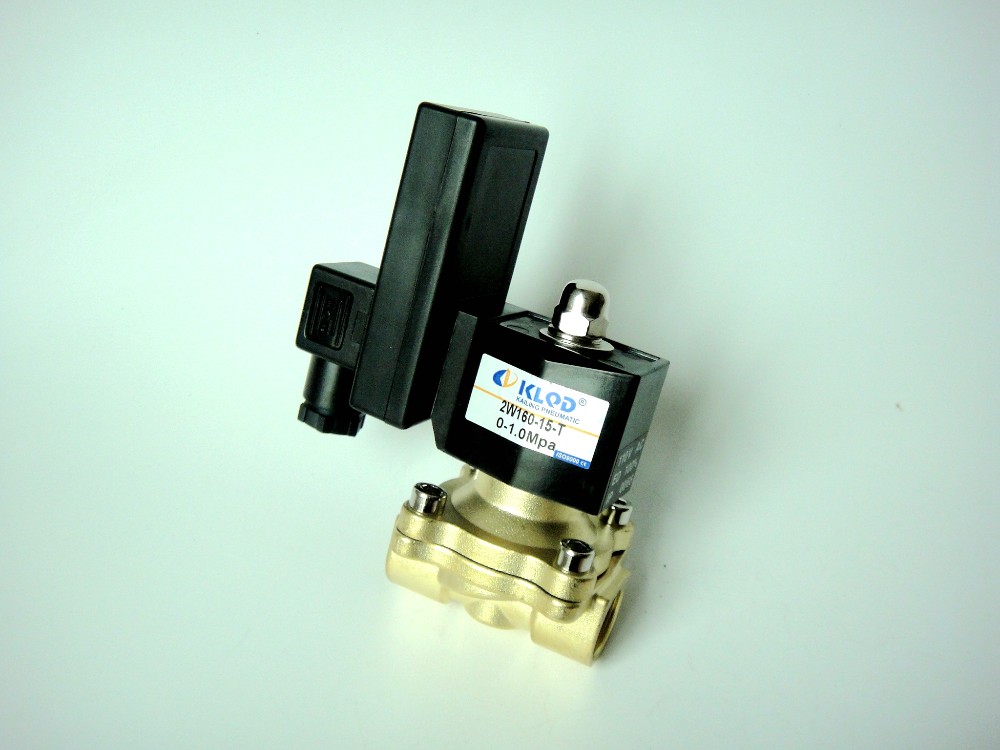

2W160-15T Popular Type Direct Acting 2/2 Way Solenoid Valve With 1S~99h59min59sec Digital Timer

Product Description

Product Description

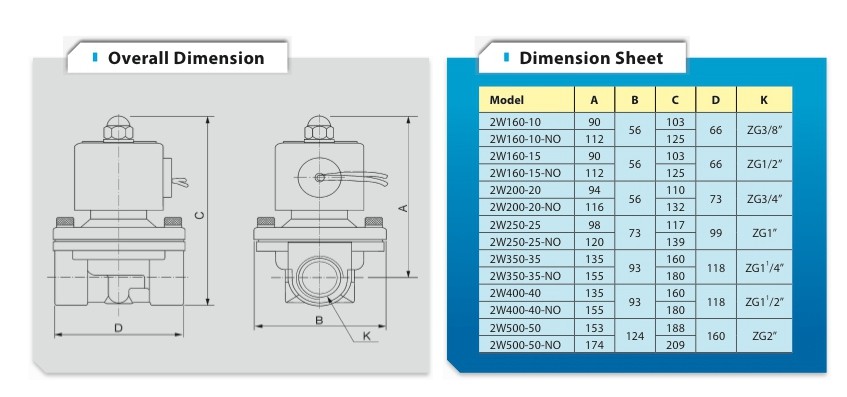

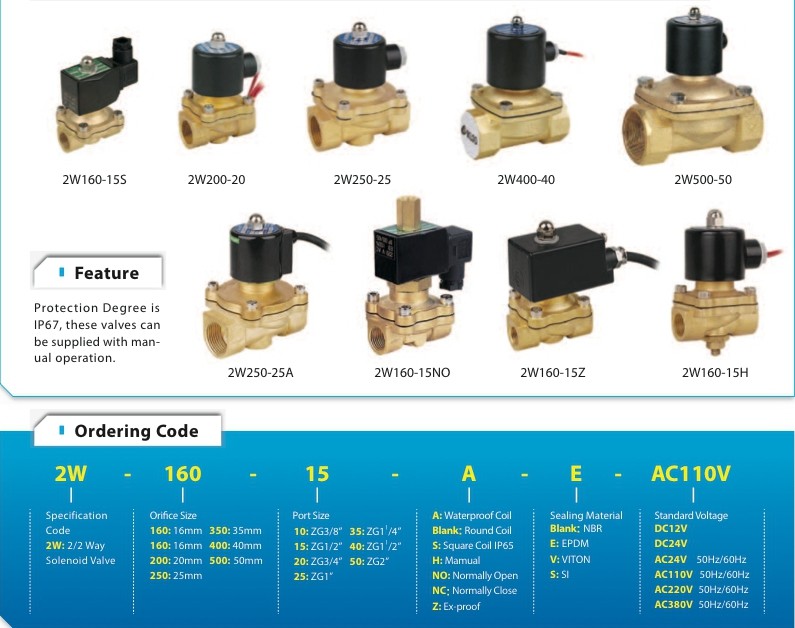

Model
2W160-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
Working Medium
Air,Water,Oil,Gas
Operation
Direct Acting
Acting Type
Normally Closed/ Normally Open
Orifice Size
16
20
25
35
40

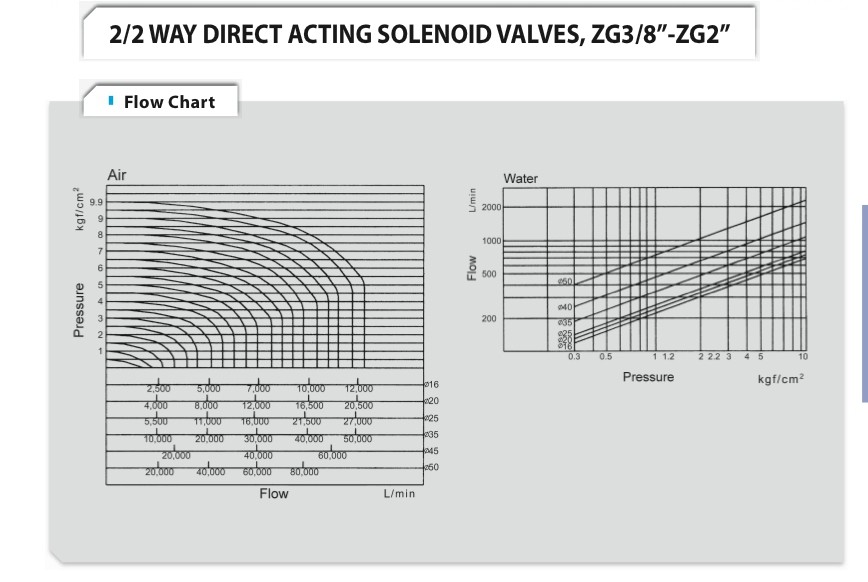

CV Value
4.8
4.8
12
24
29
Port Size
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
Operation Fluid Viscosity
20 CST Below
Operating Pressure
Air:0~1.0Mpa  Water:0~0.7Mpa  Oil:0~0.9Mpa
Max.Pressure Resistance
1.0 Mpa(Normal Open Type Max.Pressure 0.8Mpa)
Operating Temperature
NBR for -5~80°C and VITON for -5~150°C
Voltage Range
-10%~+10%
Material of Body
Brass
Material of Oil Seal
NBR,EPDM,VITON,SI
Product DetailsOur CompanyFactoryOur FactoryWorkshopOur WorkshopWarehouseOur WarehouseTeamOur TeamOur CertificationsHigh quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.

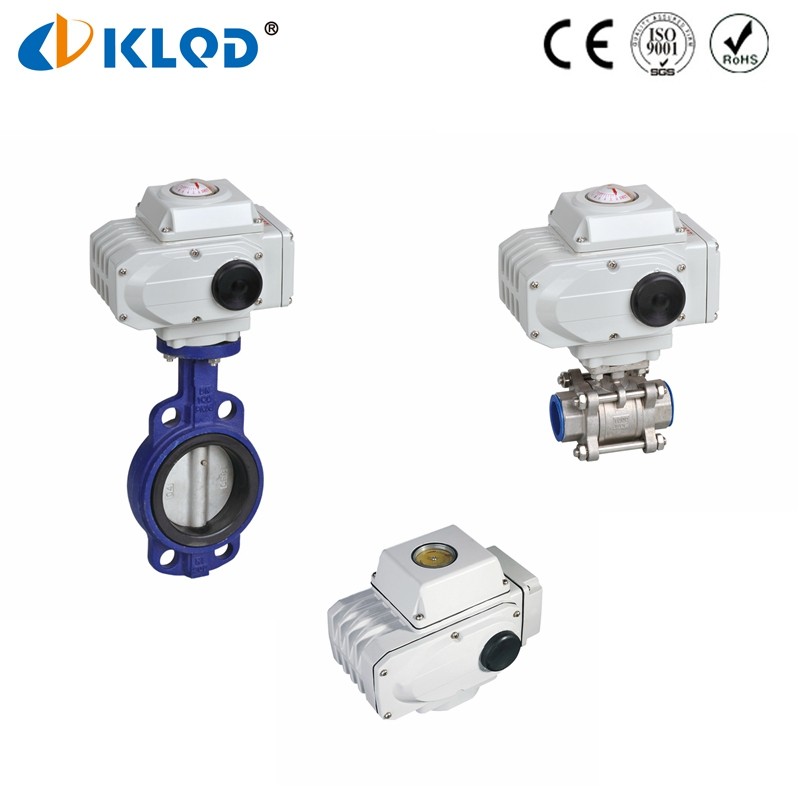

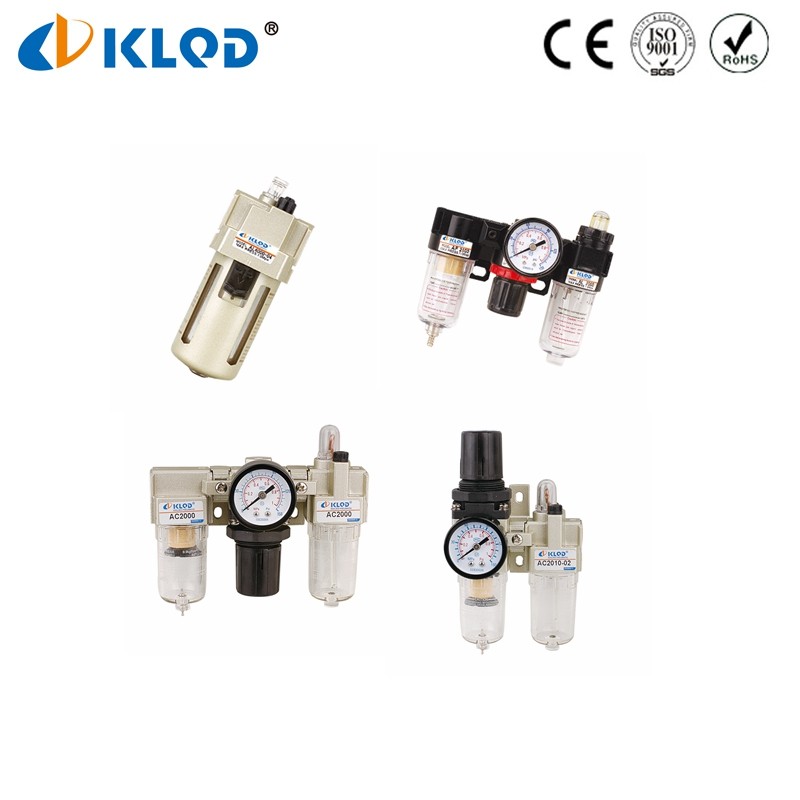

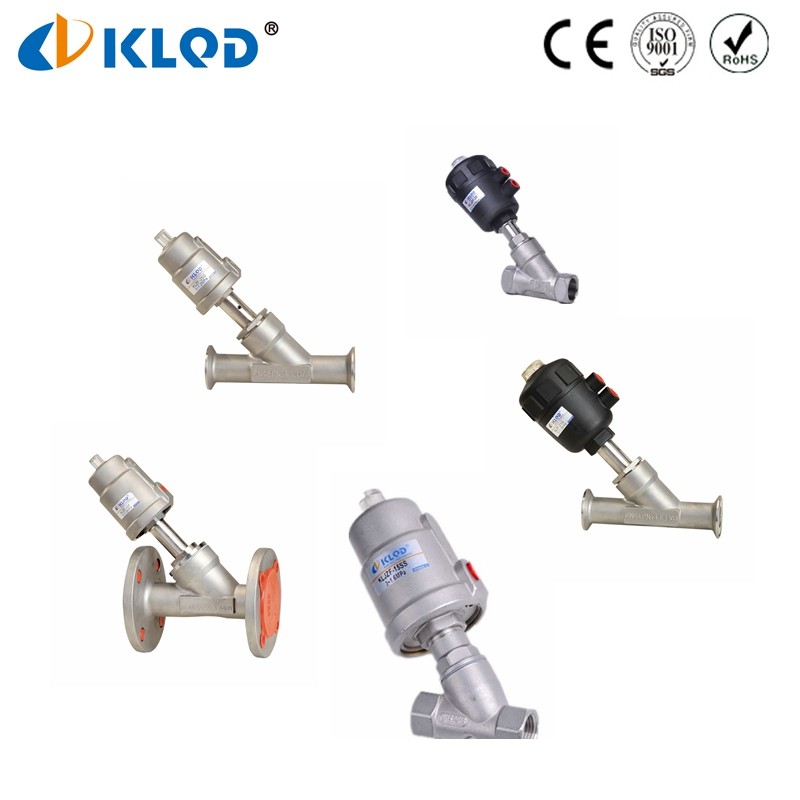

Payment Packing & DeliveryCarton Packing.Use the strong Nylon bags to protect products.Carton Packing.Expert and careful packing to make sure all products are in good condition.Pallet packing & delivery.1. Use the pallet to protect products.2. Sea shipment.3. Air shipment.4. Also has the cooperation with DHL/Fedex/UPS/EMS. Related products Pneumatic Actuator/Ball Valve/Butterfly ValveElectric Actuator/Ball Valve/Butterfly ValveAngle Seat ValveSolenoid ValvePneumatic CylinderTubePneumatic FittingsAir Source TreatmentMechanical Valve FAQ Q1. Is sample order acceptable?

A: Yes.It's ok.

Q2. How to place the order?

A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?

A: We have stock for standard products.

Q4. How to make the payment?

A: We accept BankT/T,Western Union,Paypal,or L/C,

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Contact us if you need more details on Digital Timer Solenoid valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Solenoid Valve Timer、Solenoid Valve With Timer. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : 2/2 Way Solenoid Valves
